When you buy a box of household aluminum foil or cling film, you may notice a small metal cutting blade fixed to one edge of the box. This simple component allows users to cut the roll quickly and neatly.
A Tinplate Saw Blade Binding Machine is designed to automate the production and installation of this type of blade. It uses a die or mold to punch small saw blades from tinplate coil and then transfers and fixes the blades onto a designated position on a color box. The finished box can then be used for household aluminum foil rolls, cling film, plastic wrap, food wrapping film, and similar small-roll products.
In simple terms, the machine combines two operations: making the small tinplate saw blade and fixing it onto the packaging box. This makes it different from a conventional Saw Blade Making Machine that only produces blades.
What Is a Tinplate Saw Blade Binding Machine?
A Tinplate Saw Blade Binding Machine is packaging equipment that cuts small saw blades from continuous tinplate coil and automatically installs them onto paper or color boxes.
The basic idea is quite straightforward. A roll of tinplate is fed into the machine, positioned accurately, and punched by a specially designed mold. The punched piece becomes the cutting blade used on the consumer packaging box. The blade is then transferred to the fixing section, where it is installed at the required position on the box.
The main process can be summarized as:
Tinplate Coil → Feeding → Positioning → Die Punching → Saw Blade → Transfer → Color Box Positioning → Blade Fixing → Finished Box
This equipment is sometimes described using different names, including:
- Color Box Saw Blade
- Cutter Fixing Machine
- Saw Blade Binding Machine
- Tinplate Saw Blade Cutter
- Saw Blade Fixing Machine
- Paper Box Saw Blade Fixing Equipment
These names can cause some confusion when buyers search for equipment. A conventional Saw Blade Making Machine normally focuses on producing the metal blade itself. A saw blade binding machine for packaging goes one step further by integrating blade production with blade installation on the box.
How Does the Machine Work?
The working process normally consists of several stages. The exact mechanical design can vary between manufacturers, but the basic production logic remains similar.
Step 1: Tinplate Coil Feeding
The raw material is supplied in coil form. The tinplate coil is loaded onto the feeding section and gradually introduced into the punching area.
Material thickness, width, and hardness need to match the machine and mold design. These factors should be confirmed before purchasing because the tooling is designed around the actual blade requirements.
Step 2: Tinplate Positioning
Before the blade is punched, the tinplate needs to be positioned correctly.
Proper positioning is important because even a small deviation can affect the final blade shape or the distance between individual blades. The feeding and positioning system therefore works together to place the material in the correct location before each punching operation.
Step 3: Saw Blade Punching
The mold is one of the most important parts of the system.
The die punches the required saw blade shape from the tinplate. Depending on the product design, the mold determines the blade length, width, tooth pattern, tooth spacing, and overall shape.
For example, a blade designed for a household aluminum foil box may have a different tooth design from one used for another type of food wrap package. Therefore, the mold should be designed according to the customer’s actual packaging requirements.
Step 4: Saw Blade Transfer
After punching, the newly produced blade is transferred from the cutting area to the fixing section.
The transfer process needs to maintain the blade’s orientation and position. This is especially important when the blade has to be installed at a specific location on a printed color box.
Step 5: Color Box Positioning
The color box is positioned so that the blade can be installed at the predetermined location.
This stage depends on the dimensions and structure of the packaging box. The box may have a specific edge, slot, or area designed for the cutting blade.
For buyers, this means that the box dimensions should be confirmed before the machine and tooling are finalized.
Step 6: Saw Blade Fixing / Binding
The blade is then fixed onto the paper box.
Different machine designs may use different fixing methods, so buyers should confirm the actual mechanism with the equipment supplier. The key requirement is that the blade is positioned correctly and securely enough for the intended packaging application.
The machine therefore acts not only as a tinplate saw blade cutter, but also as a saw blade fixing machine.
Step 7: Finished Color Box Output
Once the blade has been installed, the finished color box exits the working section.
The box can then continue to the next packaging operation, such as aluminum foil roll insertion, film roll packaging, or final packing.
What Products Use This Saw Blade?
The most common applications are consumer products sold in small rolls inside printed paper or color boxes.
1. Household Aluminum Foil Boxes

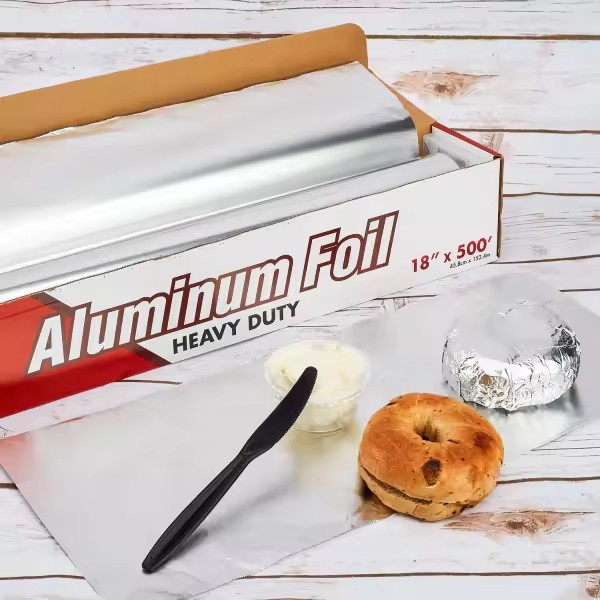

Household aluminum foil is commonly sold as a small roll inside a printed color box. A small metal cutting blade is installed along the edge of the box.
When the consumer pulls out the required length of foil, the blade allows the foil to be cut from the roll.
For household foil manufacturers, the blade is therefore a small but necessary part of the overall aluminum foil roll packaging process.
If your factory already operates an aluminum foil rewinding machine, the saw blade fixing process can be considered as part of the downstream packaging operation.
2. Cling Film and Plastic Wrap Boxes
The same packaging concept is widely applicable to cling film and plastic wrap.

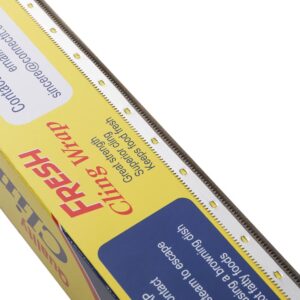

A roll of film is placed inside a printed box, while a small cutting blade is installed on the box edge. The user pulls out the film and cuts it using the integrated blade.
This makes a Color Box Saw Blade Cutter Fixing Machine relevant to factories producing or packaging household food wrapping produc
3. Other Small-Roll Packaging
Other small-roll consumer products may also use a similar packaging structure.
However, the exact suitability depends on the box design, blade dimensions, material requirements, and fixing position. Buyers should provide an actual box sample or detailed drawing when discussing a machine with a manufacturer.
What Should You Consider Before Buying a Saw Blade Binding Machine?
Buying the machine should start with the product, not the machine model.
Before contacting a supplier, prepare information about your tinplate material, blade design, color box, and expected production volume.
1. Tinplate Material
Start with the raw material.
Confirm:
- Tinplate material type
- Material thickness
- Coil width
- Material hardness
The supplier needs these details to determine whether the feeding and punching system is suitable for your material.
2. Saw Blade Size and Design
The blade design directly affects the mold.
Provide the required:
- Blade length
- Blade width
- Tooth shape
- Tooth spacing
- Overall blade design
If possible, provide a physical sample or technical drawing. This usually makes communication with the machine manufacturer much easier.
3. Color Box Dimensions
The fixing section must match the actual box.
The supplier should know the box length, width, thickness, folding structure, and the exact position where the blade needs to be installed.
A small change in the box design may require an adjustment to the fixing mechanism or tooling.
4. Mold Design
The mold deserves particular attention.
It determines the shape and dimensions of the punched blade and has a direct influence on cutting quality and production consistency.
If you plan to produce several blade designs, ask the supplier whether additional molds or tooling changes will be required.
5. Production Capacity
Consider how many finished boxes your factory needs to produce per day.
Do not choose a machine simply because it has a higher advertised speed. The real requirement is whether the machine can match your complete production workflow.
For example, if your aluminum foil rewinding and box packaging processes operate at a certain output level, the saw blade fixing process should not become a bottleneck.
6. Automation Level
Machines can be configured with different levels of automation, including:
- Manual feeding
- Semi-automatic operation
- Fully automatic production
The right choice depends on production volume, available labor, and how the machine will connect with other packaging equipment.
7. Compatibility With Existing Packaging Lines
If you already have equipment for household aluminum foil production, aluminum foil small roll packaging, box forming, or final packaging, check compatibility before purchasing.
It is better to consider the entire production flow rather than treating the saw blade machine as an isolated piece of equipment.
Conclusion
A Tinplate Saw Blade Binding Machine is designed specifically for packaging applications where a small metal cutting blade needs to be produced from tinplate and fixed onto a color box.
Unlike a conventional Saw Blade Making Machine, the equipment combines blade punching, transfer, and box fixing into one packaging-related process. This makes it particularly relevant to manufacturers of household aluminum foil, cling film, plastic wrap, and other small-roll consumer products.
For a factory planning to purchase a Saw Blade Binding Machine, the best starting point is the actual product. Confirm the tinplate specification, blade design, color box dimensions, fixing position, and required production capacity first. These details will determine the suitable machine and mold configuration.
If you are planning an aluminum foil or cling film packaging project and need a saw blade cutting and fixing solution, providing your tinplate specification, blade sample or drawing, color box sample, and target production volume will make it much easier to select the right equipment.
FAQ Section
What is a Tinplate Saw Blade Binding Machine?
A Tinplate Saw Blade Binding Machine is packaging equipment that punches small saw blades from tinplate coil and fixes them onto a designated position of a color box. It is mainly used for consumer products such as household aluminum foil, cling film, and plastic wrap sold in small rolls.
What material is used to make the saw blades?
Tinplate coil is commonly used for this type of packaging blade. The exact material specification depends on the blade design, required thickness, and customer’s packaging application.
Can the machine make different saw blade sizes?
Yes, different blade sizes and tooth designs can generally be produced with suitable tooling. However, different designs may require different molds or machine adjustments. The blade drawing or sample should be provided before the machine is designed.
What products can use this machine?
The common applications include household aluminum foil rolls, cling film, plastic wrap, food wrapping film, and other similar small-roll consumer packaging products that require a cutting blade on the box.
Is the machine fully automatic?
The automation level depends on the specific machine model and configuration. Some systems may require manual feeding or handling, while others can be configured for more automated production.
Can the machine work with custom color box sizes?
In many cases, the machine can be designed or adjusted for specific box sizes. However, the box dimensions, structure, and exact blade position should be confirmed before the machine and mold are finalized.
How do I choose the right saw blade binding machine?
Start with six basic factors: tinplate material, blade dimensions, color box size, mold design, required production capacity, and automation level. If the machine will be connected to an existing packaging line, compatibility should also be checked.
